4 Post Parking Lift-Bending Column

Home >  Products >  Four Post Parking Lift >  4 Post Parking Lift-Bending Column

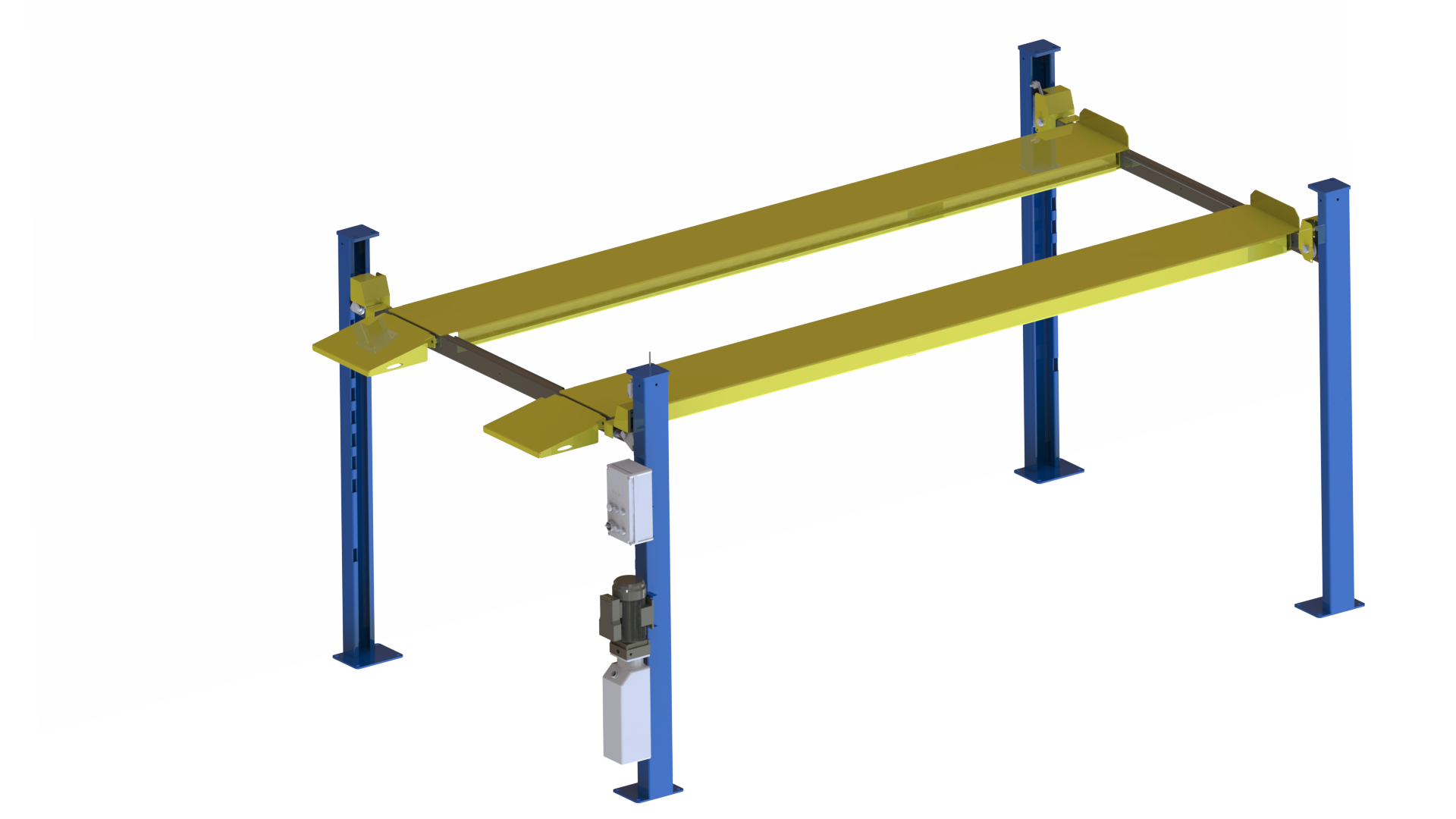

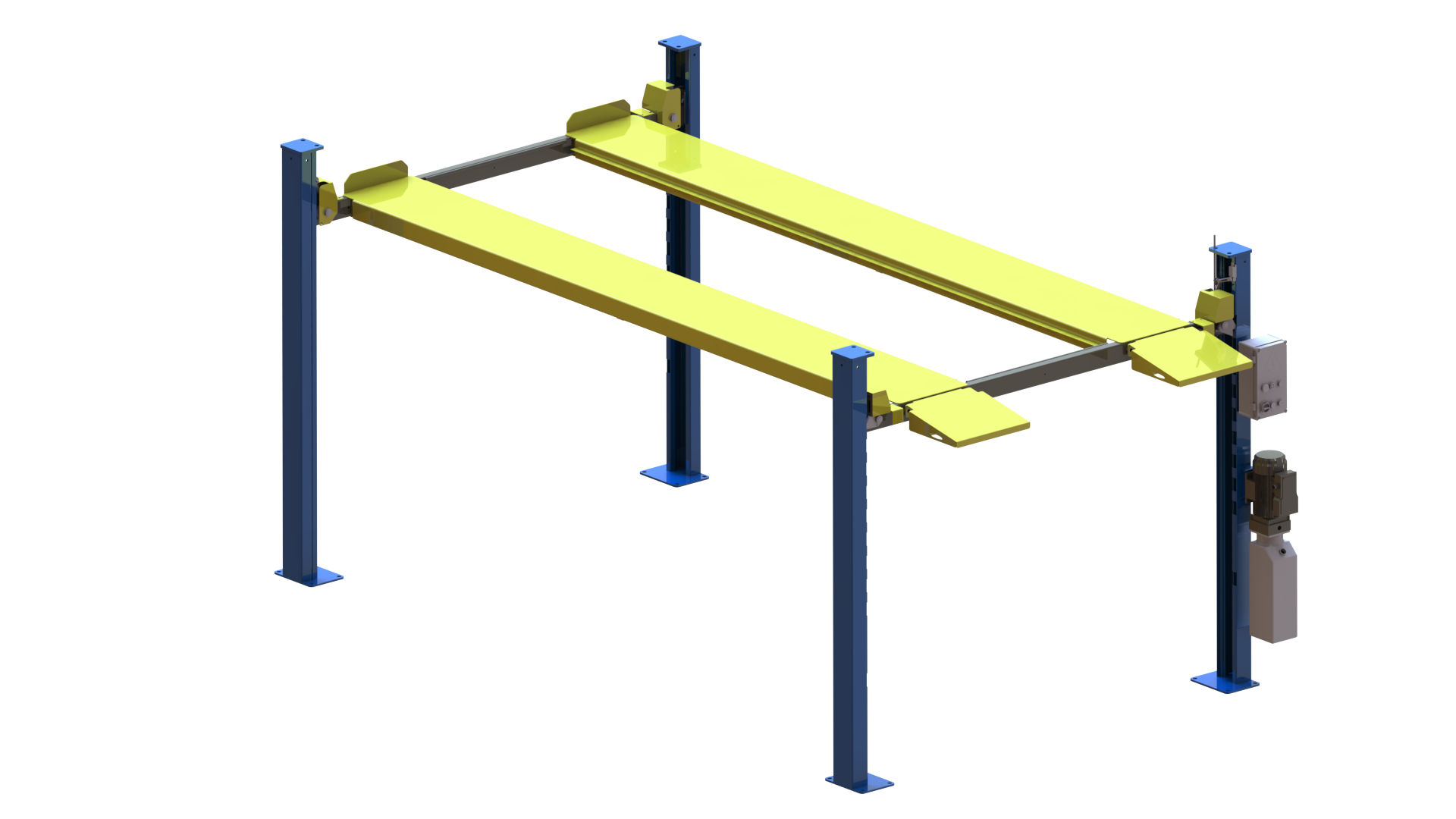

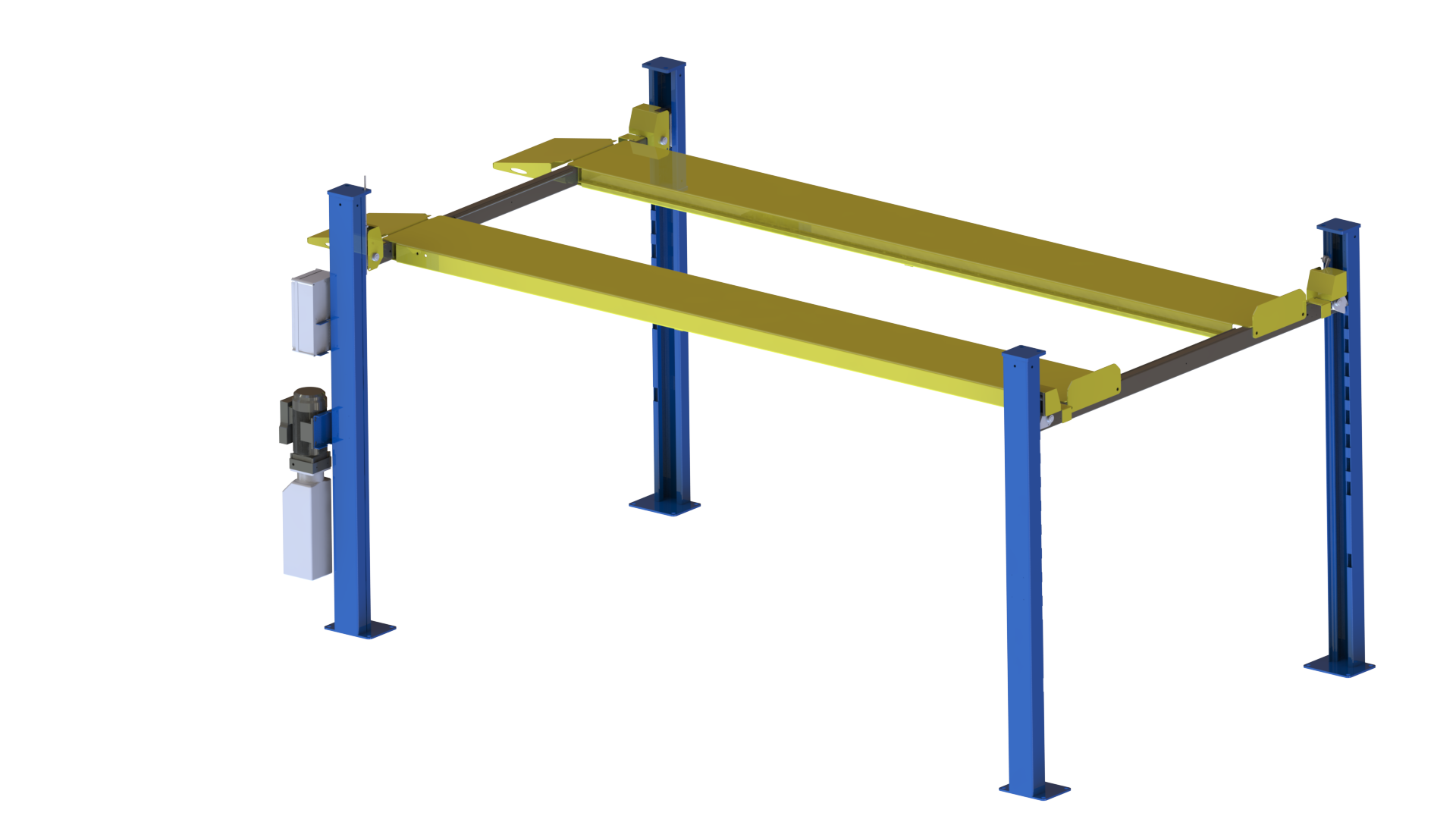

Four post parking lift-Bending column
Four post parking lift-Bending column

Four post parking lift-Bending column

Get a Quote
Product Description
1.CE certified.
2.Hydraulic cylinder driven and wire rope lifting system.

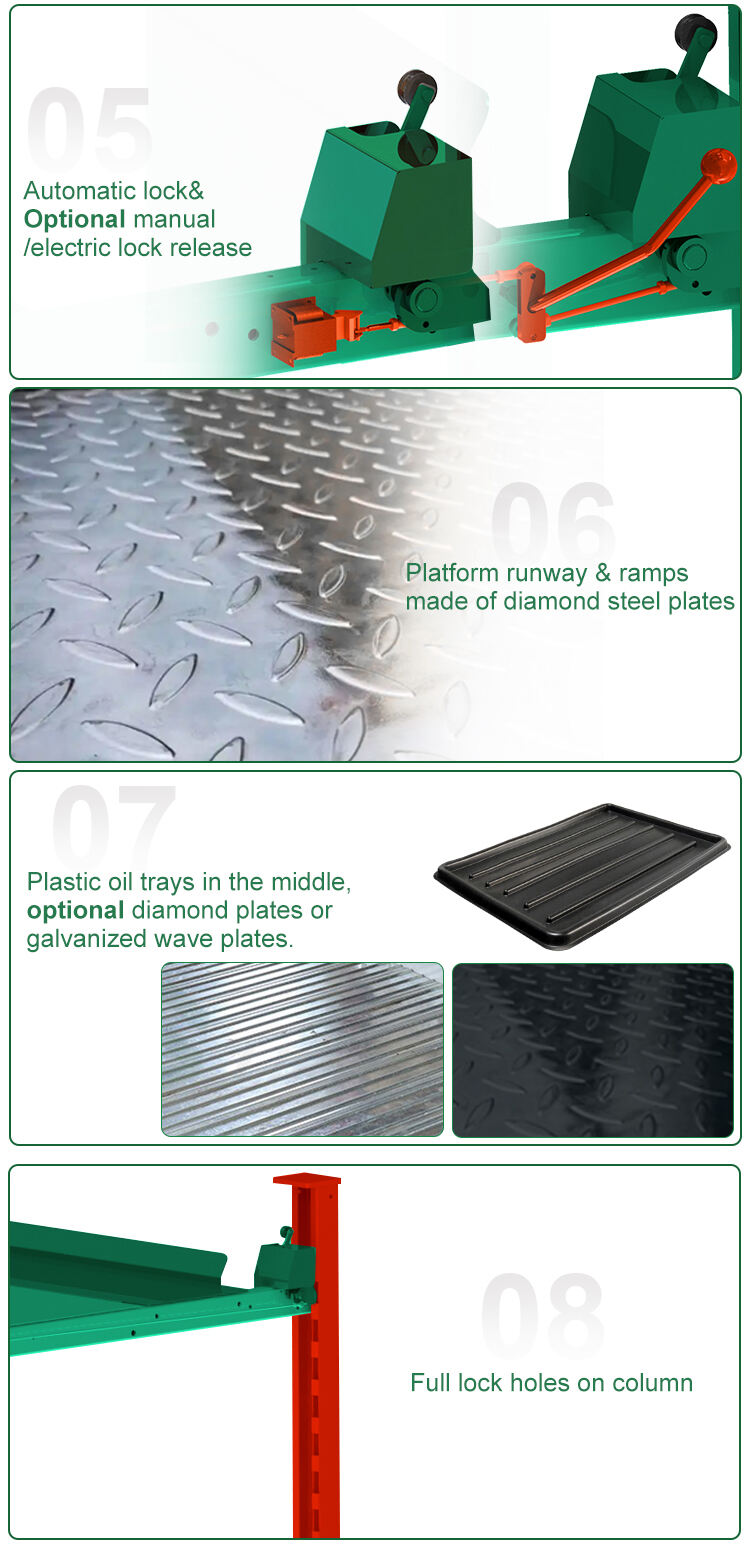

3.Automatic& Electric lock release.
4.Bending columns with lock holes to ensure different lifting heights.
5.Platform runway & ramps made of diamond steel plates.
6.High polymer polyethylene slide blocks, wear-resistance.
7.Each column has an electromagnet and a wire rope anti-breaking lock, double protection.
8.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated or galvanized.
Model No. PFP27/1800B PFP27/2000B PFP36/1800B PFP36/2000
Drive mode Hydraulic cylinder with steel wire rope
Lifting capacity 2700kg 2700kg 3600kg 3600kg
Lifting height 1800mm 2000mm 1800mm 2000mm

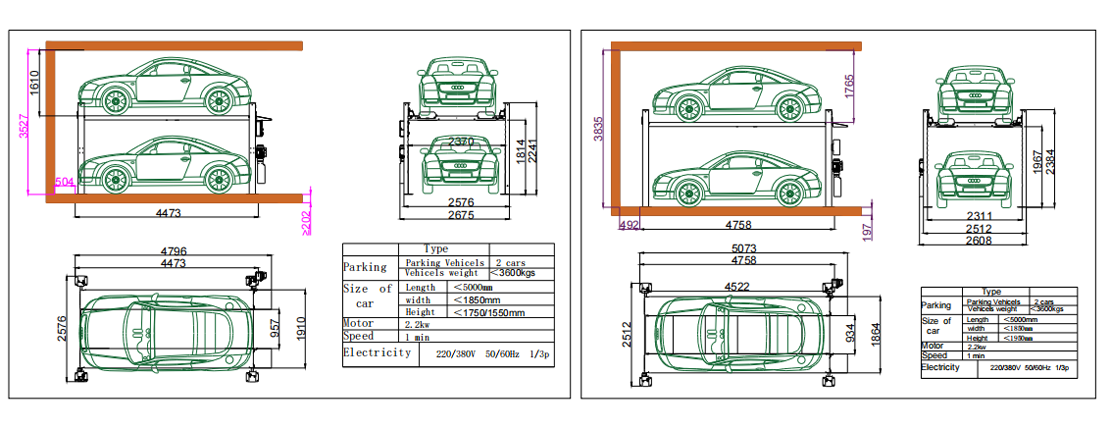

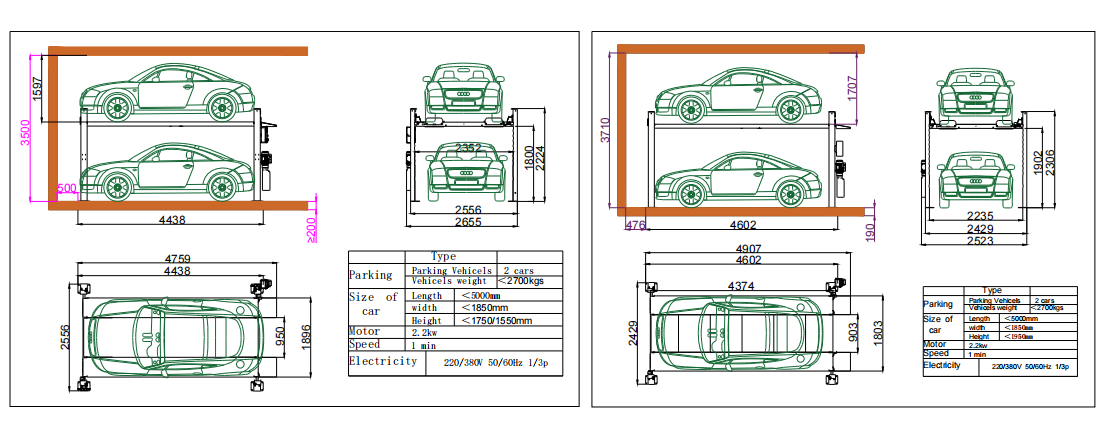

External dimension 4759 * 2655 * 2224mm 5159 * 2653 * 2424mm 4759 * 2655 * 2224mm 5159 * 2653 * 2424mm
Lock release Electric release
Middle of runway Plastic oil trays, galvanized wave plates, diamond plates and flat plates optional
Rise/drop time 70s/60s
Voltage 110v, 220v, 230v, 380v/50Hz, 60Hz/1Ph, 3Ph, 2.2kw
Certification CE certificated
Quantity in container 12 units in 20 ft container / 240 units in 40 ft container
