Puzzle parking system

1.Strong Structure (I-beam & C-channels) with independent platforms.

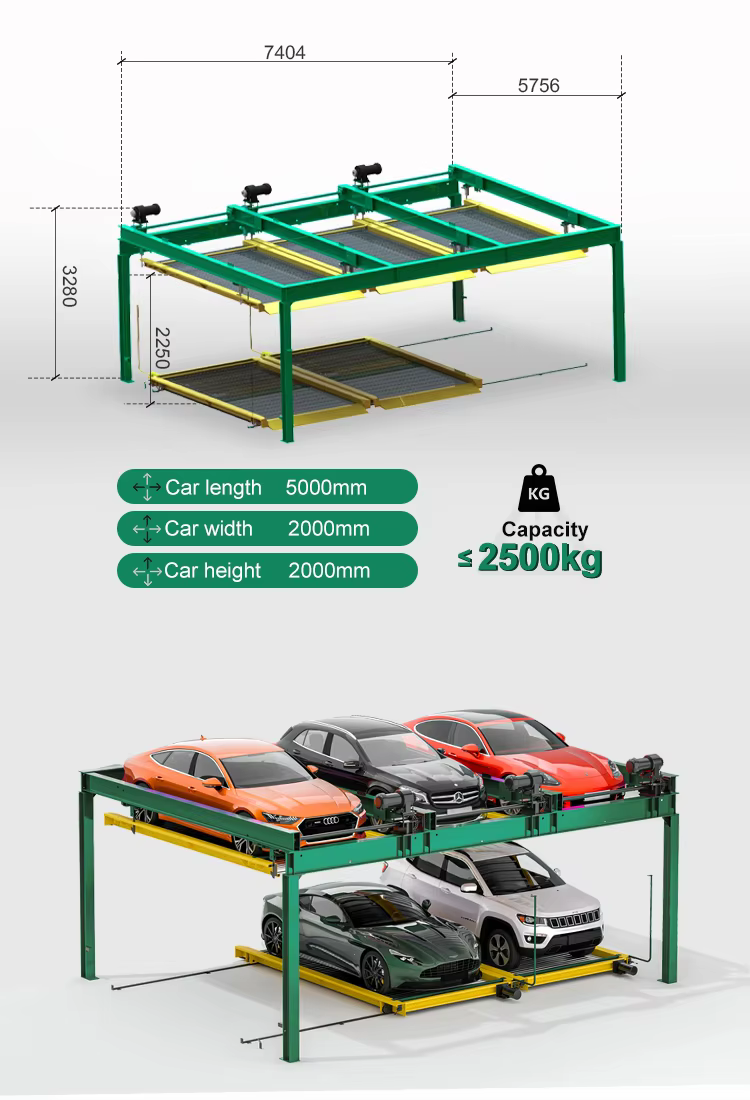

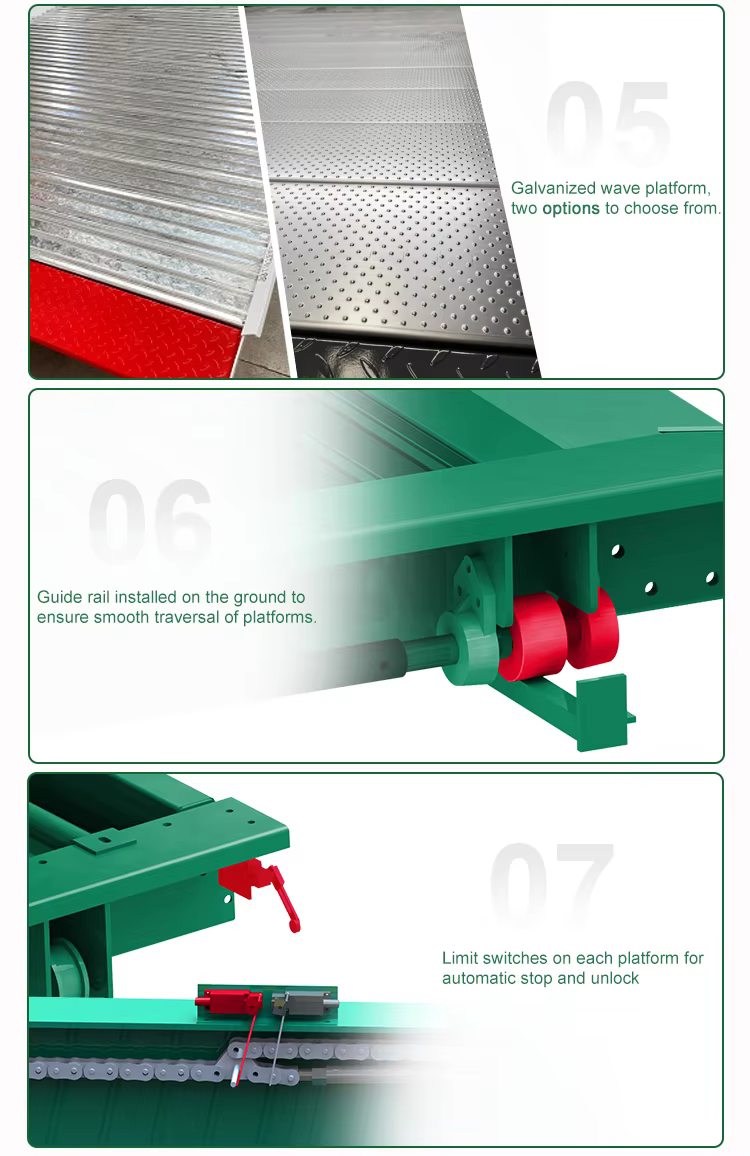

2.Special platform profile with galvanized wave plates and tire stoppers.
3.Customized design with multiple vertical levels (2-6) and multiple horizontal bays (3-6).

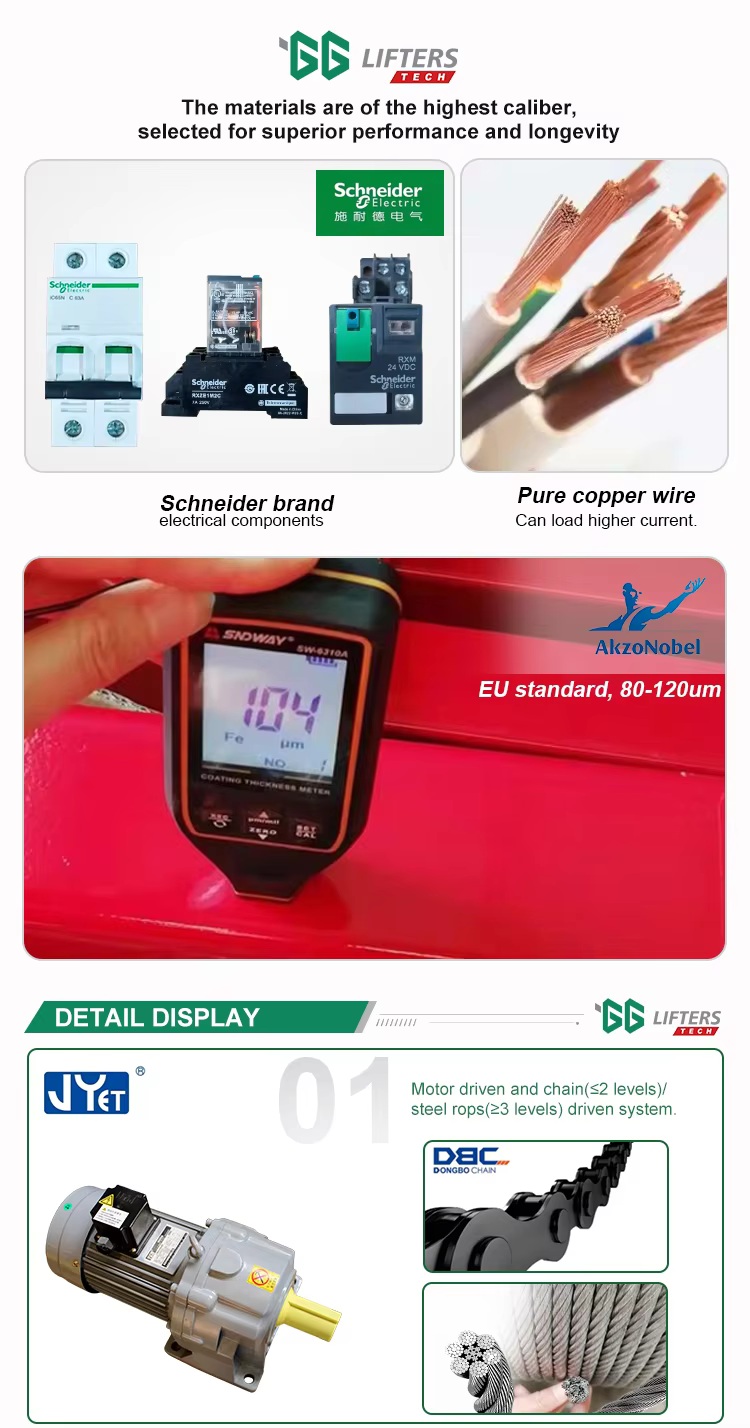

4.Top level platforms move vertically (Up & Down) only through geared motors & lifting chains;Lower level platforms slide horizontally only through geared motor& guide rails.
5.Middle levels platforms move vertically & slide horizontally.

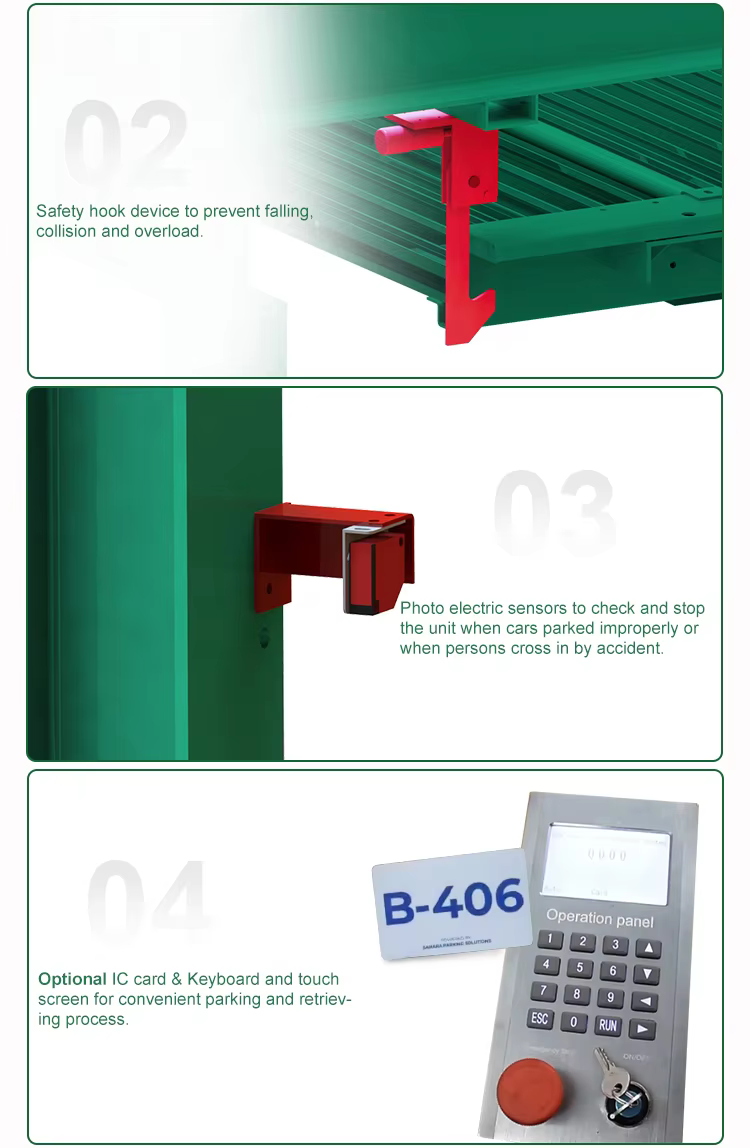

6.Each platform (except for lower level) is equipped with four safety hook devices to prevent falling, collision and overload.
7.Photo electric sensors to stop the unit when cars park improperly or when persons accidentally cross in.
8.Operation panel equipped with Emergency stop, manual keyboard & screen with IC card reader.
9.PLC device mounted inside electric panel to control the parking/retrieving process.
10.The standard finishing is hot dip galvanized but can be in powder coated too.
