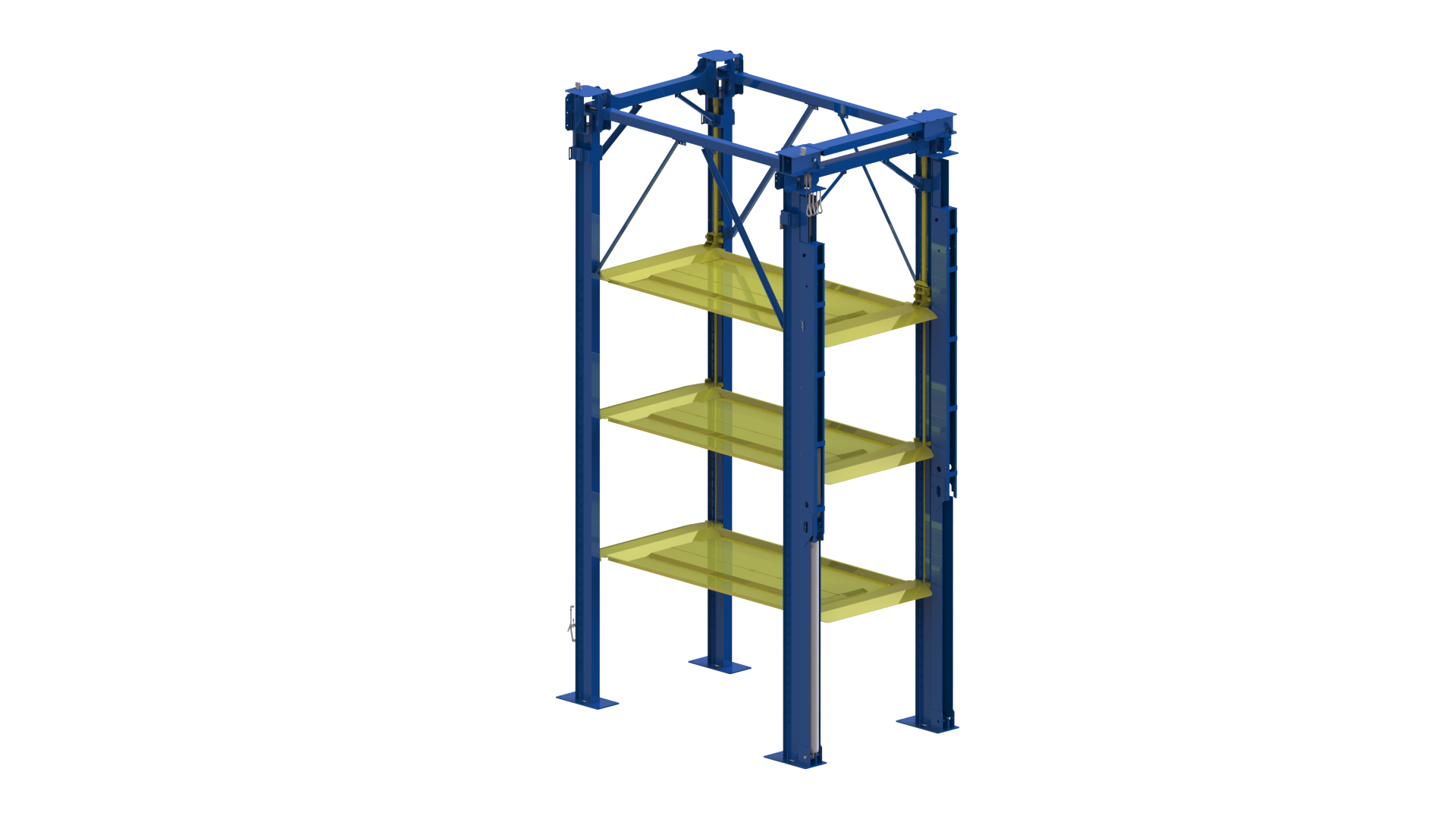

Four post quad stacker parking lift

This GPARK-PFS is a cost-effective way to allow storage of three/four vehicles in a single parking space. A kind of simple parking lifts, suitable for both commercial and residential parking purposes.
This model offers compact convenience, so it also helps maintain an open, fresh appearance in more spacious garages.
Four-post lift uses the best construction,so it has the best safety features in the industry. but it is the most economical type.

Product Description

1.Four post multi-level parking system with hydraulic driven and steel rope lifting system.
2.Automatic lock at every platform level to ensure safety.
3.Wire rope anti-break device increases safety.
4.Single parking space can accommodate multiple parking spaces.
5.The columns can be used in conjunction with each other and designed as triple to ten-piece, suitable for parking traders, etc.
6.Steel parts are shot blasted then powder coated with desired color.

Model No.	PFS 30/G+2	PFS 30/G+3
Drive mode	Hydraulic cylinder with steel wire rope
Lifting height	2030mm+2050mm	2030mm+2050mm+2050mm
Lifting capacity	3000kg for each parking space
External dimension	536032107712mm	536032109162mm
Lock release	Electric release
Middle of runway	Flat plates
Lifting speed	about 40 s/ level
Voltage	110v, 220v, 230v, 380v/50Hz, 60Hz/3Ph, 7.5kw
Quantity in container	1units in 40 ft container
