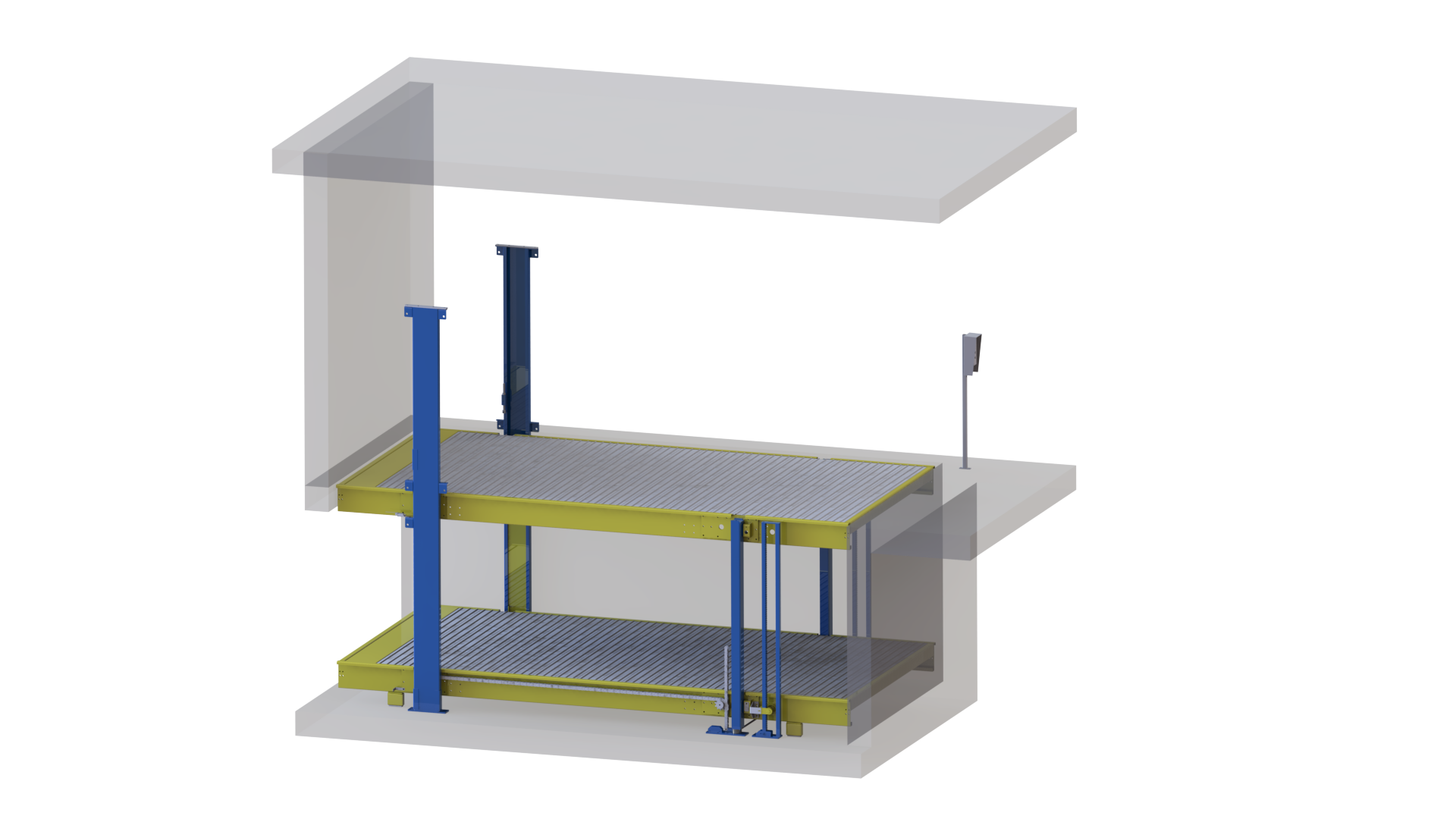

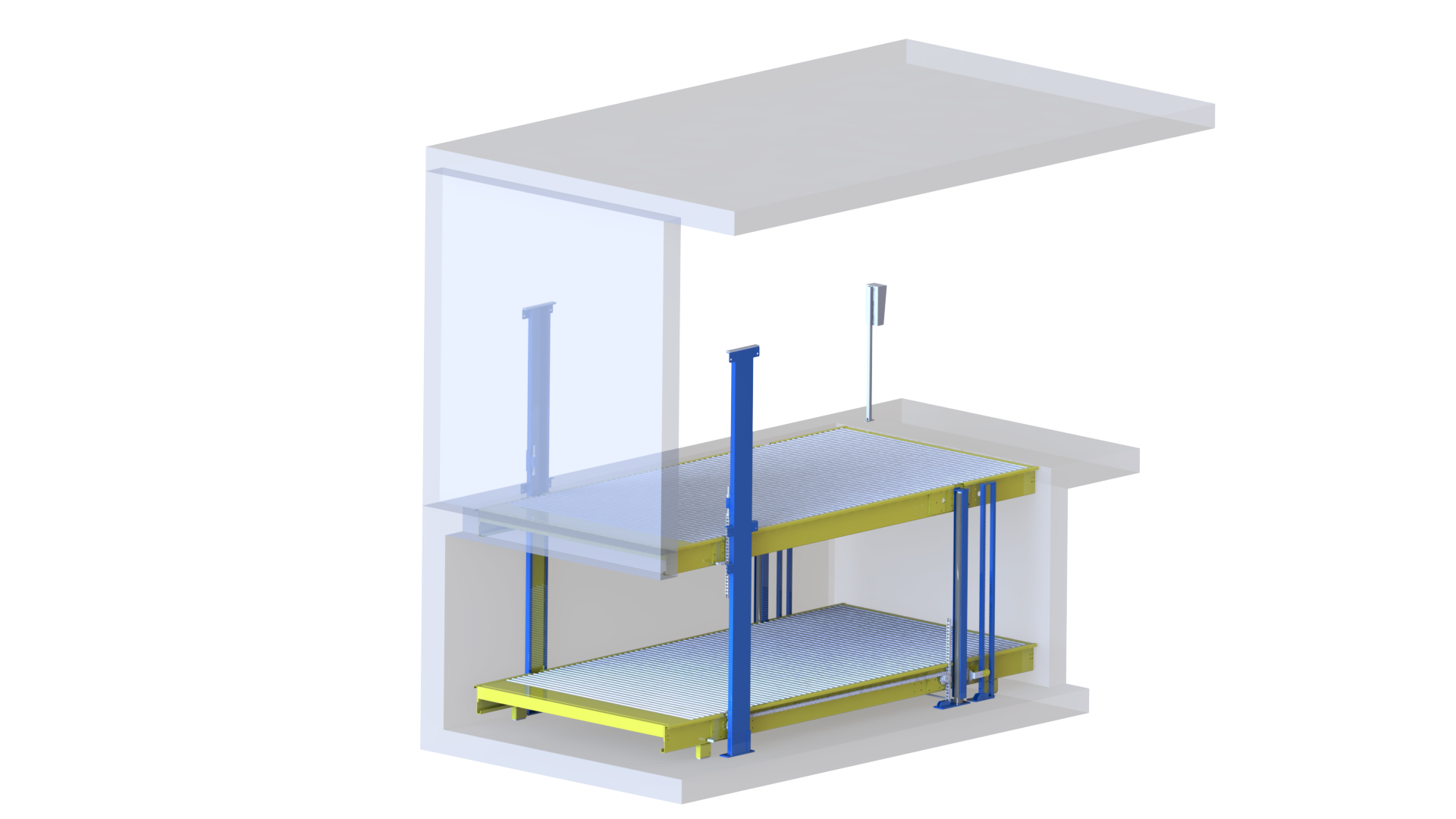

This GPARK-UTS is a kind of pit storage stacker,hydraulic driven and chain balance system.Fully utilization of underground space, and flexible designed according to customer requirements, suitable for residential & commercial use. More cost saving than the model of UPS.
1. Hydraulic driven through 2 ea hydraulic cylinders system.
2. Directly park or pick up the car at any level independently.
3. Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance.
4. Tire stoppers in each platform to ensure correct placement of the car.
5. Limit switch in every level to stop platforms at predefined heights.
6. Electric operation box is equipped with Push Buttons (UP/Down) & Emergency and ON/ OFF “Key Switch “where the user can’t take it out unless the lift is fully down inside the pit.
7. Units are designed and built according to EN1493: 2010 and EN14010: 2003 standards.
8. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
Model No. |
UTS20/1600 |
Drive mode |
2 ea hydraulic cylinder |
Lifting capacity |
2000kg for each platform |
Lifting height |
1600mm,Customizable |
External dimensions |
5200*2700*3950mm |
Motor capacity |
4kw |
Lock release |
Automatic electric unlock |
Operation |
Electric operation,push buttons on control panel |
Voltage |
110v,220v,230v,380v/50Hz,60Hz/3Ph |
Quantity in container |
4 unit in 20ft container/8 units in 40 ft container |
