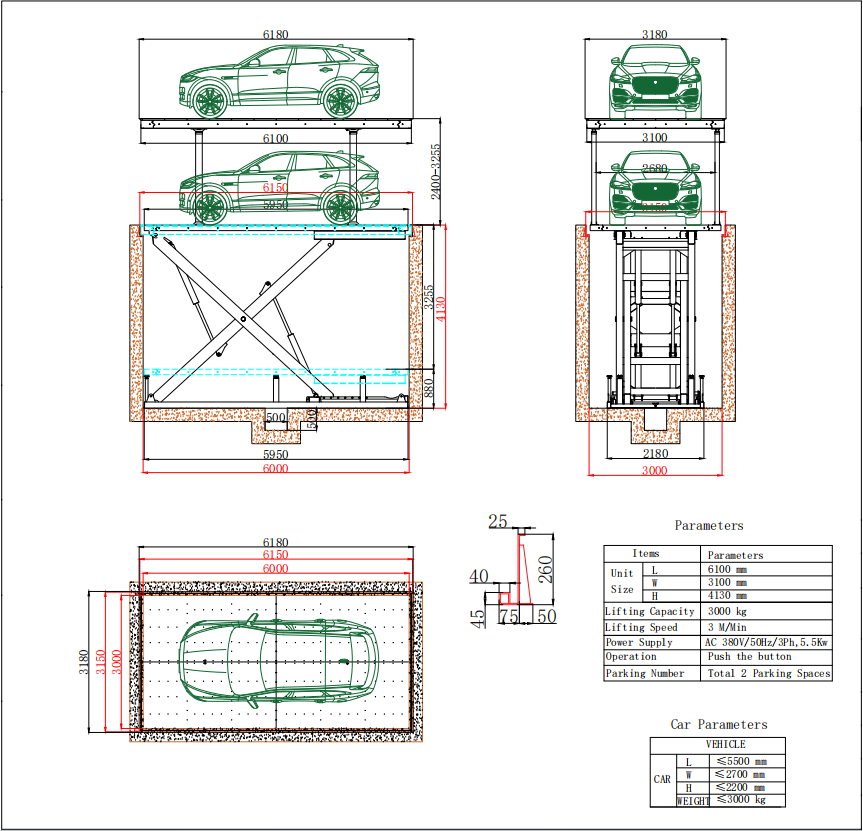

Underground scissor car parking lift-hydraulic driven

1.Hydraulic Pump station with necessary oil hoses and fittings.
2. 4 ea cylinders driven make running smoothly and powerful.
3. Manual oil drain valve to lower platform manually when power off.
4. High quality of bearings offers long service life.
5. Hydraulic piping system: The entire system of fluid conductors such as hose, pipe, tubing.
6. Base frame with U channels to guide sliding blocks / rollers during raising up & Lowering down.
7. Hose burst/ rupture valve to prevent back flow of pressurized oil in the system after the valve.
8. 6 ea pedestals (supports) on corners & middle to allow resting of the platform over them during full lowering position.
9. Anti-fall locking system to be activated automatically when reaching predefined level. Pneumatic lock release by compressed air.
