Underground Hydraulic Parking Lift

Home >  Products >  Underground Parking Lift >  Underground Hydraulic Parking Lift

Underground car parking lift-hydraulic driven

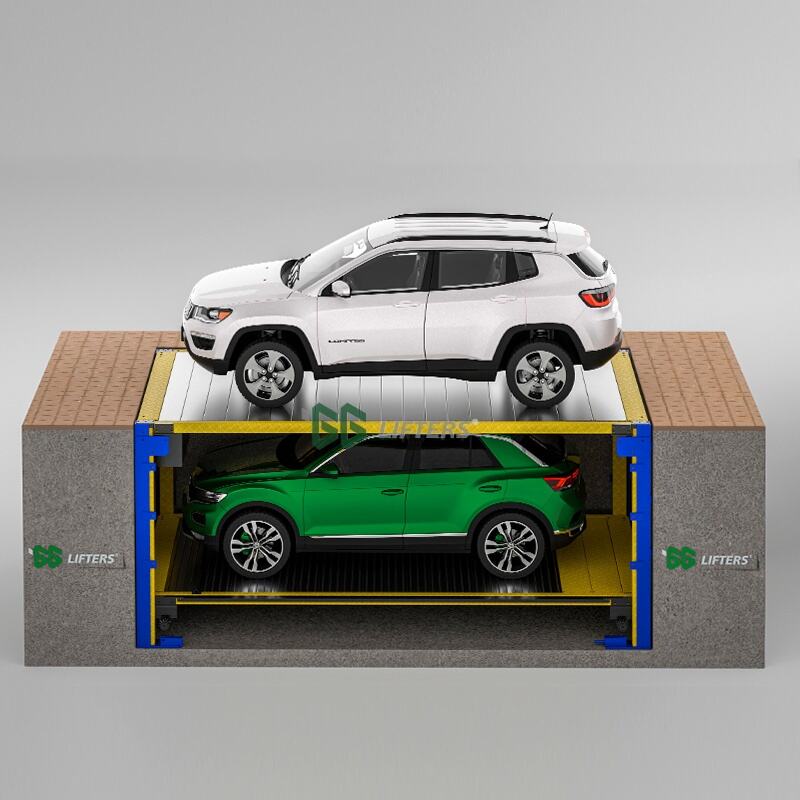

This GPARK-UPS is a kind of pit storage stacker,hydraulic driven and chain balance system.Fully utilization of underground space, no prominent steel structure above ground level
It’s flexible designed according to customer requirements, suitable for residential & commercial use.

Product Description

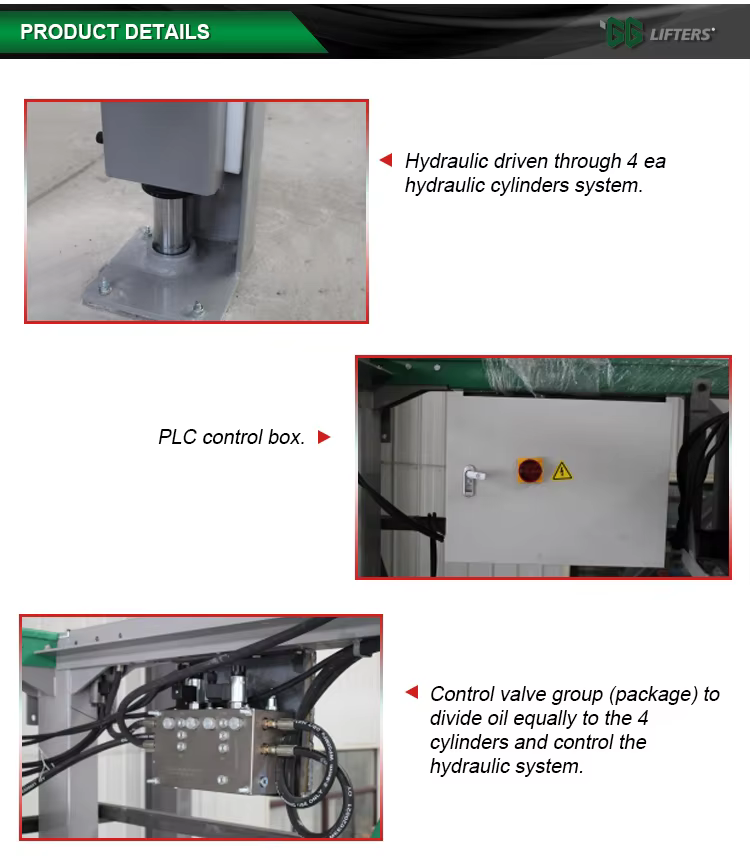

1.  Hydraulic driven through 4 ea hydraulic cylinders system.
2.  Directly park or pick up the car at any level independently.
3.  Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance.
4.  Front and back wave plates are removable for easy access to the pit ground floor in case of emergency.
5.  Tire stoppers in each platform to ensure correct placement of the car.
6.  Top platform is used for parking & drive through.
7.  Limit switch in every level to stop platforms at predefined heights.
8.  Electric operation box is equipped with Push Buttons (UP/Down) & Emergency and ON/ OFF “Key Switch “where the  user can’t take it out unless the lift is  fully down inside the pit.
9.  Units are designed and built according to EN1493: 2010 and EN14010: 2003 standards.
10.   Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Model No.

UPS25/1800/2

UPS30/2000/2

Drive mode

4 ea hydraulic cylinder

Lifting capacity

2500kg

3000kg

Lifting height

1800mm,Customizable

2000mm,Customizable

External dimensions

5200*2800*2400mm

5200*2800*2600mm

Motor capacity

5.5kw

7.5kw

Platform

Galvanized Wave plate

Operation

Electric operation,push buttons on control panel

Rise/drop time

4-6m/min

Voltage

110v,220v,230v,380v/50Hz,60Hz/1Ph,3Ph

Quantity in container

2 units in 20 ft container/5 units in 40 ft container



underground car parking lift hydraulic driven-1

underground car parking lift hydraulic driven-2
