Two Post Parking Lift

Home >  Products >  Two Post Parking Lift

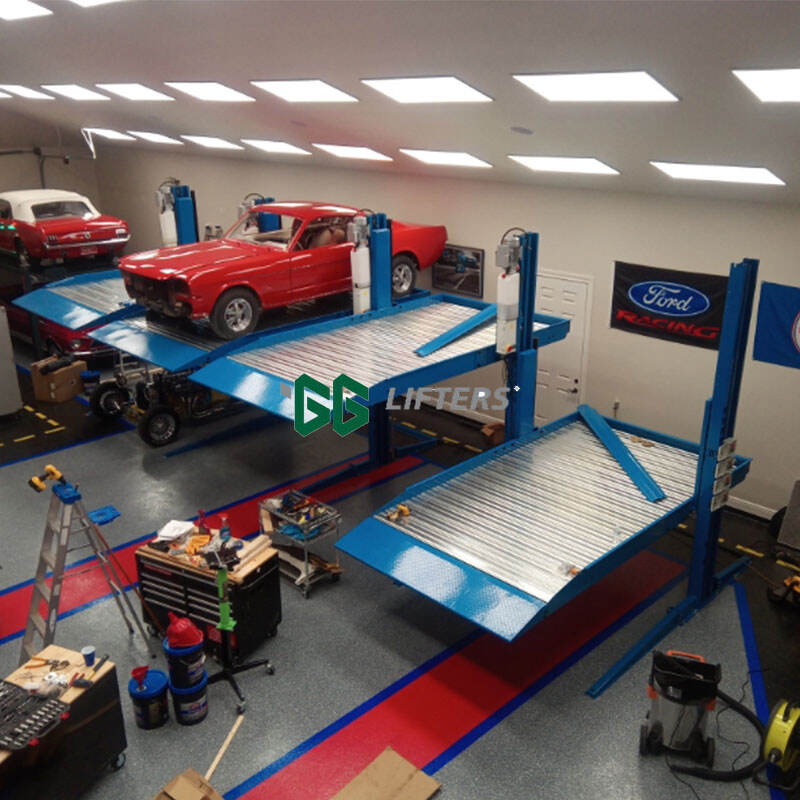

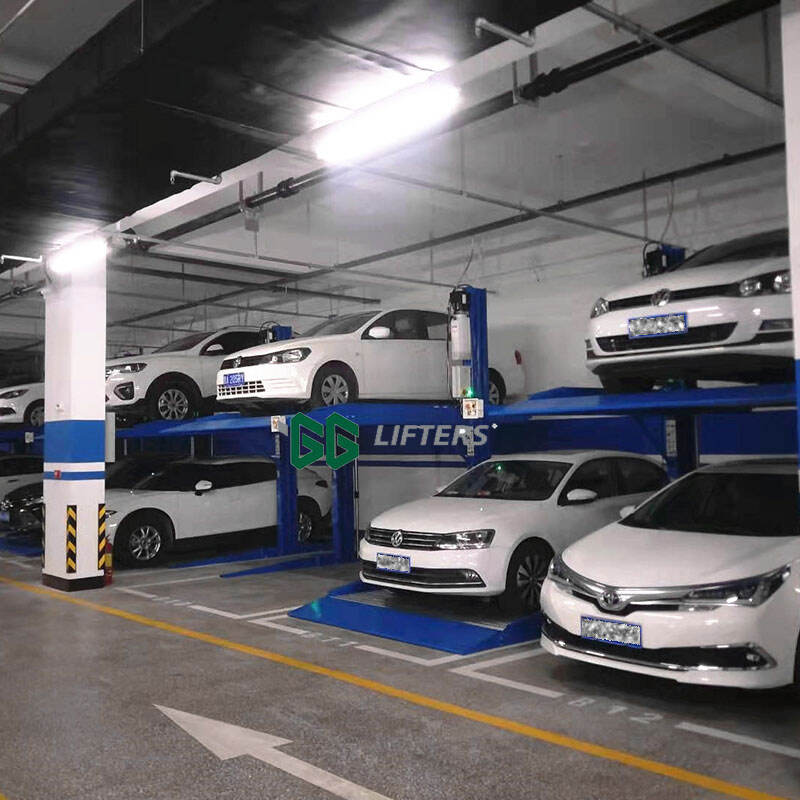

Two post parking lift-Single Stage dual cylinders

TWO POST CAR PARKING LIFT can parking 2 cars at the same time.
Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars firstly. Equipment max-lifting height is 2100mm, max-lifting capacity is 3000kg.
Suitable for parking sedan and SUV.Equipment size can be customized by customers.

Product Description

1.CE certified.

2.Hydraulic cylinder driven and chain lifting system. Single stage dual cylinder is more stable and stronger.

3.Automatic lock& electric lock release.

4.Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars firstly.

5.The lift can be shared columns to save more cost and space.

6.Platform runway made of galvanized wave plates with strong anti-rust ability.

7.Multi-level lock holes on the column to ensure different lifting heights.

8.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated or galvanized.

Model No.

PTP25/2100

PTP27/2100

PTP30/2100

Drive mode

Dual cylinder with chain

Lifting capacity

2500kg

2700kg

3000kg

Lifting height

2100mm(6.89ft)

Post height

3000mm

3500mm

3500mm

Drive through

2100mm(6.89ft)

Lock release

Electric release

Operation

Electric operation, push buttons on control panel

Rise/drop time

70s/60s

Voltage

110v, 220v, 230v, 380v/50Hz, 60Hz/1Ph, 3Ph, 2.2kw

Certification

CE certificated

Quantity in container

8 units in 20 ft container/20 units in 40 ft container
