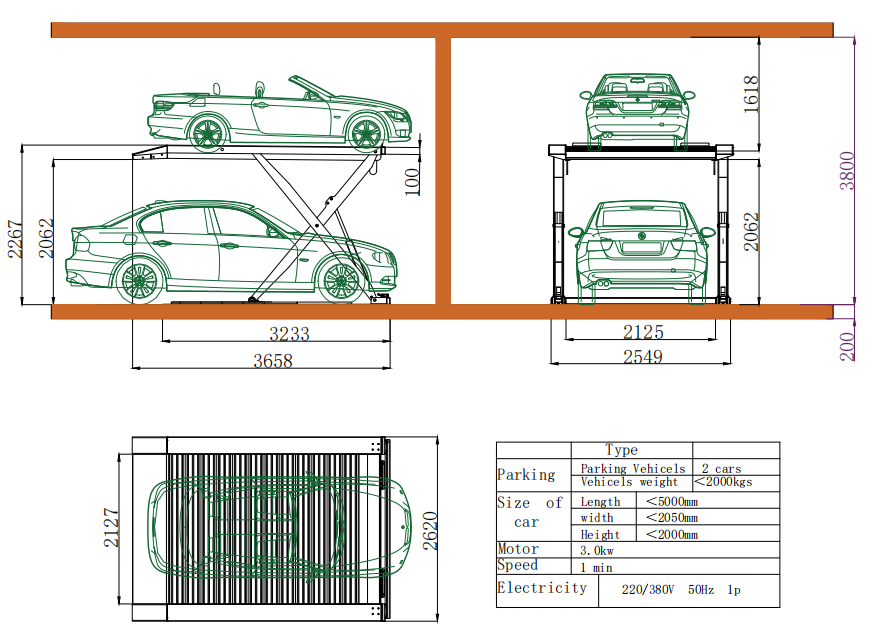

This GPARK-PSL is a double layer scissor parkinig lift, with small space occupation, cross posts, setting the cylinder inside the post to save some space than other parking lifts.
1. Foldable posts’ design to occupy small space.
2. Single stage dual-cylinder lifting system.
3. Balance valve to ensure automatic synchronization of both posts.
4. Automatic lock & electric Lock release
5. Platform with galvanized wave plates.
6. All steel parts are sandblasted then anti-corrosion primer painted and top finish color coated
Model No. |
PSL20/2062 |
Drive mode |
Hydraulic cylinder |
Lifting height |
2062mm |
Lifting capacity |
2000KG |
External dimension |
3658*2549*2267mm |
Lock release |
Electric release |
Platform |
Galvanized wave plate |
Lifting speed |
1min |
Voltage |
110v, 220v, 230v, 380v/50Hz, 60Hz/1ph, 3Ph, 3.0kw |
Quantity in container |
1units in 40 ft container |
