Cost-effective way to allow storage of three vehicles in a single parking space.
Comparing with traditional triple stacker, it need less space,and more cost saving.
The height is available to adjust according to your car height.
The multiple safety features make sure your cars stay in the air until YOU move them.
This is the perfect mechanical parking system is special suit to long-time storage for sedans, SUVs and full-size trucks.
1.Trilevel storage lift (ground +2 upper levels) to park 3 cars over each other.
2.CE certified.

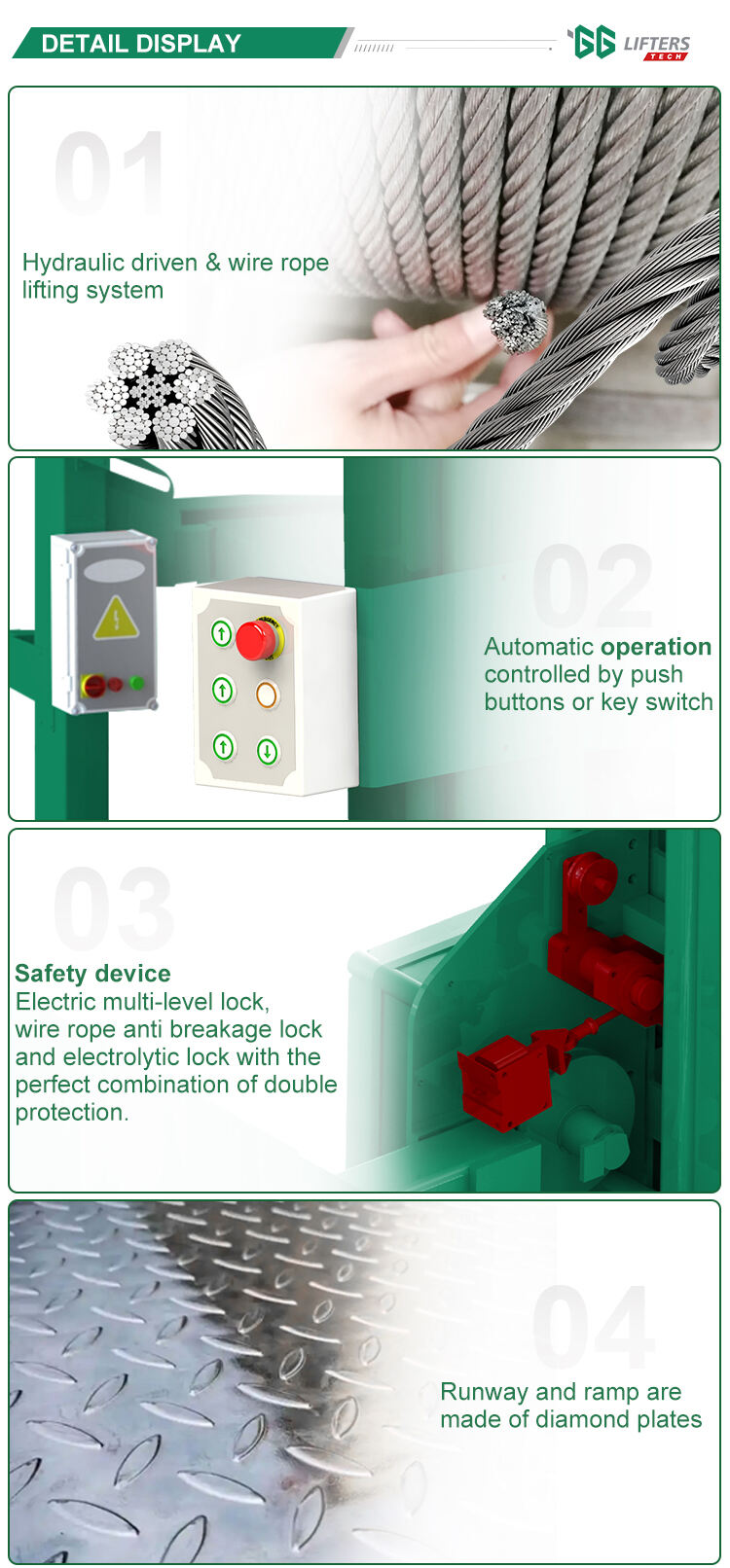

3.Hydraulic cylinder driven and wire rope lifting system.
4.Safety locks engage automatically inside ladders in all posts ,100 mm pitch.
5.Additional safety locks will be activated in case of steel rope rupture.

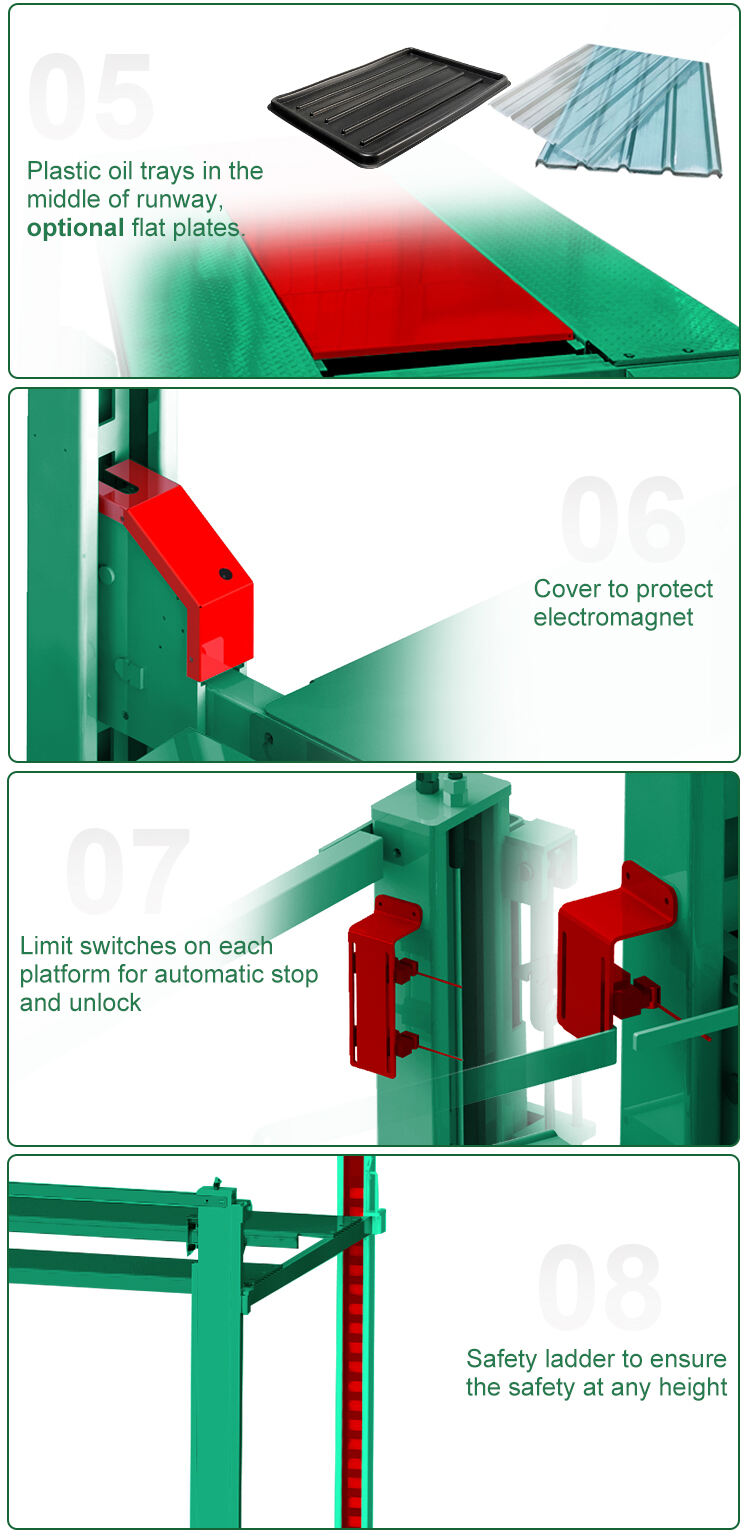

6.Runways are made from anti-slipping diamond plates with rear wheel stoppers .
7.Push button control, control panel (with up, down& emergency stop) fixed in front of the column
8.Steel parts are shot blasted then powder coated with desired color.
Model No. |
PFP25/25/1800 |
Drive mode |
Hydraulic cylinder with steel wire rope |
Lifting capacity |
2500KG/platform |

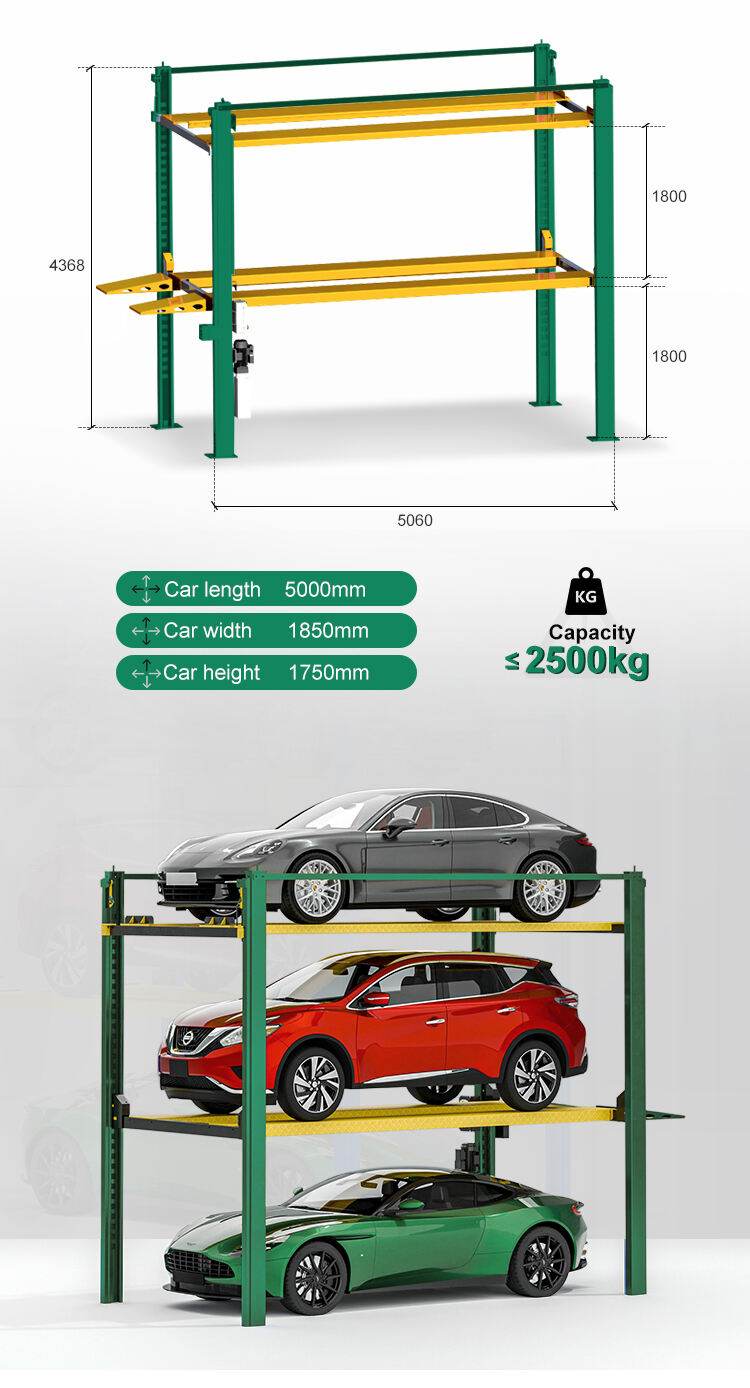

Lifting height |
1800mm/ platform |

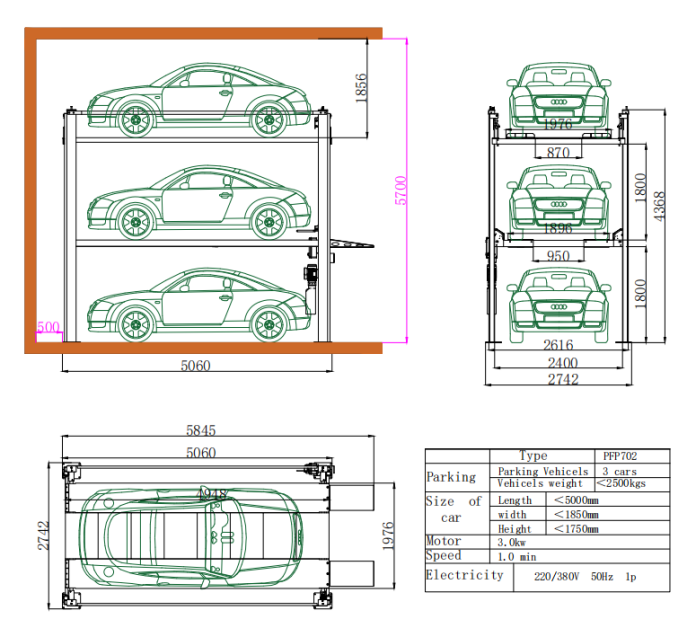

External dimension |
5845*2742*4368mm |
Lock release |
Electric release |
Middle of runway |
upper platform:corrugated plate,lower platform:plastic oil trays |
Rise/drop time |
60s/70s |
Voltage |
110v,220v,230v,380v/50Hz,60Hz/1Ph,3Ph,2.2kw |
Quantity in container |
6 units in 20 ft container/12 units in 40 ft container |
