4 Post Parking Lift-Ladder Column

Home >  Products >  Four Post Parking Lift >  4 Post Parking Lift-Ladder Column

Four post parking lift-ladder column
Four post parking lift-ladder column

Four post parking lift-ladder column

Get a Quote
Product Description
1.CE certified.
2.Hydraulic cylinder driven and wire rope lifting system.
3.Automatic& Electric lock release.
4..A ladder inside the column to ensure different lifting heights.
5.Platform runway & ramps made of diamond steel plates.
6.High polymer polyethylene slide blocks, wear-resistance.
7.Each column has an electromagnet and a wire rope anti-breaking lock, double protection.
8.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated or galvanized.

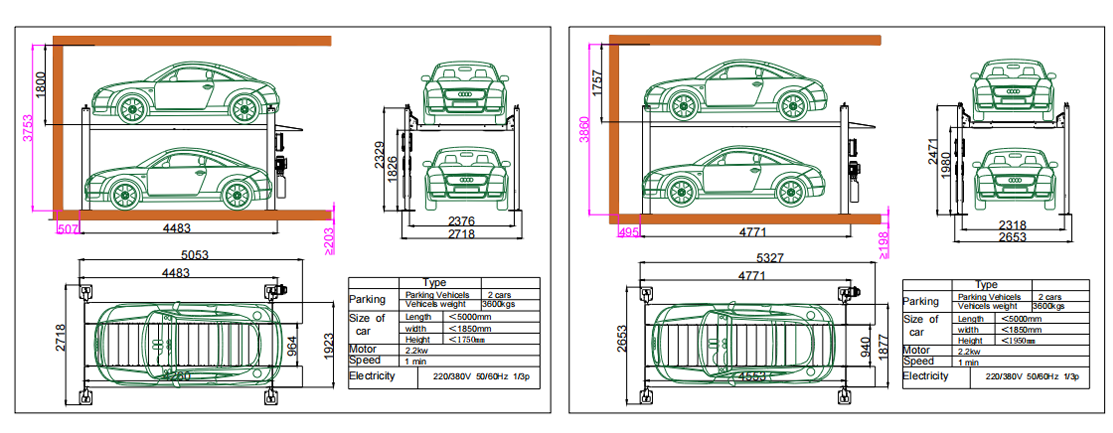

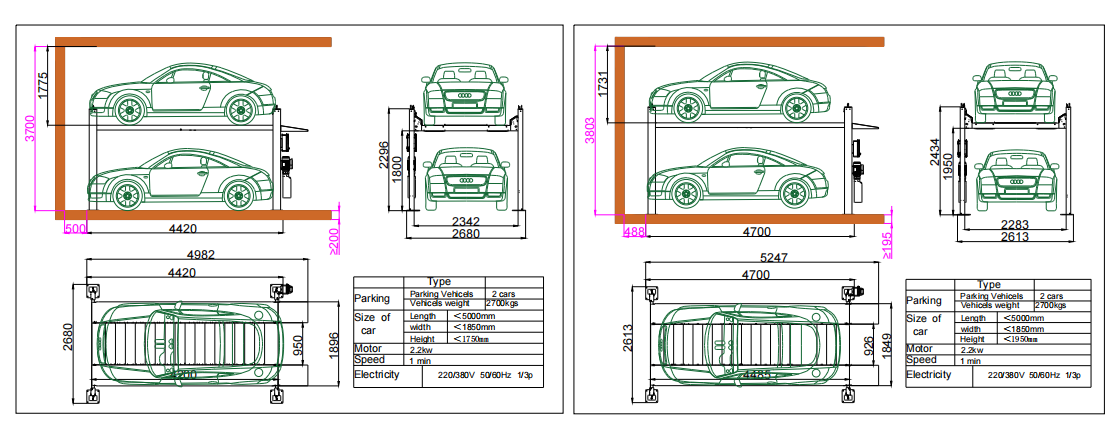

Model No. PFP27/1800L PFP27/2000L PFP36/1800L PFP36/2000L
Drive mode Hydraulic cylinder with steel wire rope
Lifting capacity 2700kg 2700kg 3600kg 3600kg
Lifting height 1800mm 2000mm 1800mm 2000mm
External dimension 4982 * 2680 * 2296mm 5382 * 2680 * 2496mm 4982 * 2680 * 2296mm 5382 * 2680 * 2496mm
Lock release Electric release
Middle of runway Plastic oil trays, galvanized wave plates, diamond plates and flat plates optional
Rise/drop time 70s/60s
Voltage 110v, 220v, 230v, 380v/50Hz, 60Hz/1Ph, 3Ph, 2.2kw
Certification CE certificated
Quantity in container 12 units in 20 ft container/24 units in 40 ft container
